Convexity Complexity

Kenneth J. Winston
Chief Risk Officer
Porntawee Nantamanasikarn
Portfolio Risk Manager

Executive Summary

  • This paper explores the theoretical and actual effects that changes in prevailing interest rates can have on portfolio duration. Understanding these effects can give investors better control over portfolio duration.
  • Portfolios with negative convexity will show rising durations as rates increase, all other things being equal.
  • However, portfolios with positive convexity may or may not show falling durations as rates increase. The rate of change of duration with respect to changes in rates is: duration-squared minus convexity.
  • For the Bloomberg Barclays U.S. Aggregate Index the relationship between rate changes and duration changes has generally been the opposite of what one would expect to see for an ordinary bond. Other indices have other duration responses to rate changes.
  • When we try to anticipate duration changes in portfolios, we need to take into account many factors, including the relationship between duration-squared and convexity.

Introduction

Managing portfolio duration is a key focus for fixed-income portfolio managers. But active portfolio duration can change even when the portfolio manager does not make a deliberate choice to alter it. Our colleague Bonnie Wongtrakool has pointed out that changes in benchmark composition can cause important changes in benchmark duration, thereby changing active (that is, relative to benchmark) portfolio duration.1 Another external force that can change both portfolio and benchmark duration is a change in prevailing interest rates. In this paper, we explore the theoretical and actual effects that changes in prevailing interest rates can have on portfolio duration. Understanding these effects can give investors better control over portfolio duration.

Ms. Wongtrakool’s white paper discusses the interplay between the mortgage, corporate and US Treasury sectors of the Bloomberg Barclays Aggregate Index. She notes that “the rally in rates over the past two years should have lengthened the duration of the Aggregate index, but in fact it...hardly changed at all.” In this paper we’ll explore why for some indices, the relationship between rate changes and duration changes can be the opposite of what we would expect to see for an ordinary bond. There are many factors that lead to duration changes in portfolios: Ms. Wongtrakool highlights the changing composition of the Aggregate Index. This paper highlights an additional factor: the relationship between duration and convexity.

The Relationship Between Rate Changes and Duration Changes

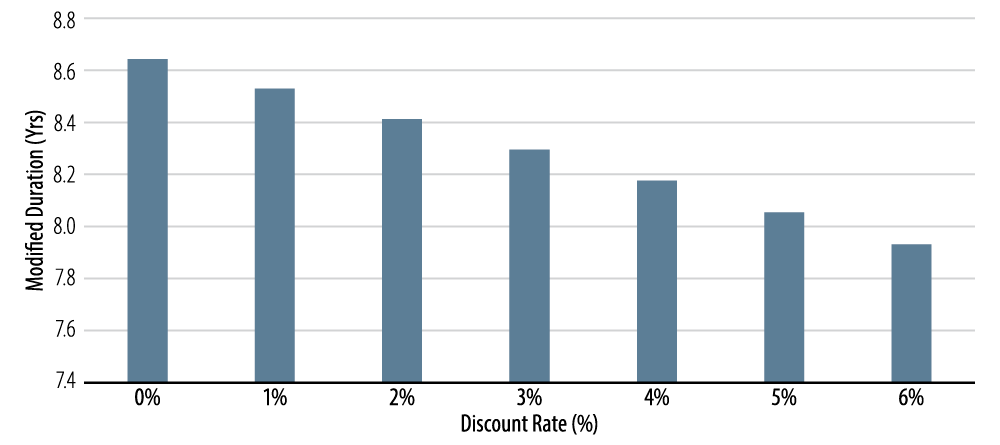

Why should a rally in rates (that is, rates going down) make a portfolio more sensitive to changes in rates? Let’s think about a bond paying two $2 coupons a year and returning $100 principal in 10 years, i.e., a 10-year 4% coupon bond. Intuitively, that final $100 principal repayment becomes less and less important in present value terms at higher and higher discount rates. Exhibit 1 shows this bond’s modified duration in years as discount rates (the rates at which future cash flows are discounted to the present) change.

Exhibit 1
Modified Duration Versus Discount Rate
convexity-complexity-2016-11
Source: Western Asset

So as rates go up, modified duration goes down. Or as Ms. Wongtrakool indicates, as rates rally (that is, as we move from right to left in Exhibit 1), duration lengthens.

We can summarize the moves in Exhibit 1 as rates-up-duration-down. That’s a good thing—if we could lower duration just before rates go up, then the portfolio would suffer less capital loss. On the flip side, if we could increase duration just before rates go down, then the portfolio would benefit more from capital gains. Exhibit 1 shows that the underlying 10-year 4% coupon bond does this automatically. That phenomenon is usually what we associate with positive convexity. It means that you don’t need a crystal ball to adjust durations the right way—the bond does it for you to some extent.2

From a Bond to an Index

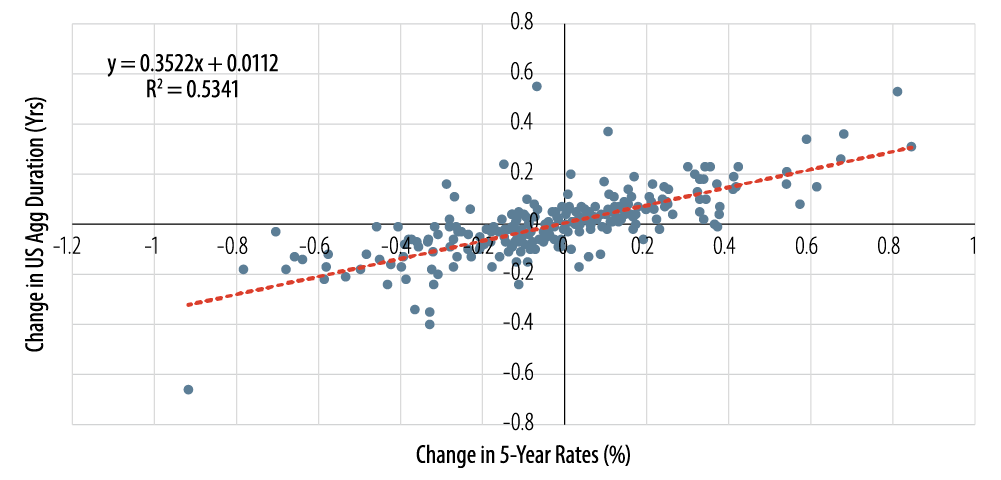

Now let’s move from the simple bond to the more complex Aggregate Index. If we plot changes in rates against changes in the Aggregate Index’s duration, we should get a downward-sloping line (rates-up-duration-down). Exhibit 2 shows this plot over the last 20 years.

Exhibit 2
Rate Versus Duration Changes, 1996–2016
convexity-complexity-2016-11
Source: Bloomberg series LBUSMD and GT5, Sept 1996–Sept 2016.

The red regression line is clearly NOT downward-sloping. In fact the statistics indicate that this upward-sloping relationship has been reliable over the last 20 years.

As we noted previously, the phenomenon of falling durations as rates increase is associated with positive convexity; similarly rising durations as rates increase is associated with negative convexity. However, the formula for the rate of change of duration with respect to changes in rates is actually duration-squared minus convexity, or D2-C (see Appendix). So it’s definitely true that—all other things being equal—negative convexity leads to rising durations as rates increase. However, positive convexity does not necessarily lead to the opposite relationship; it depends on the relative sizes of duration-squared and convexity.

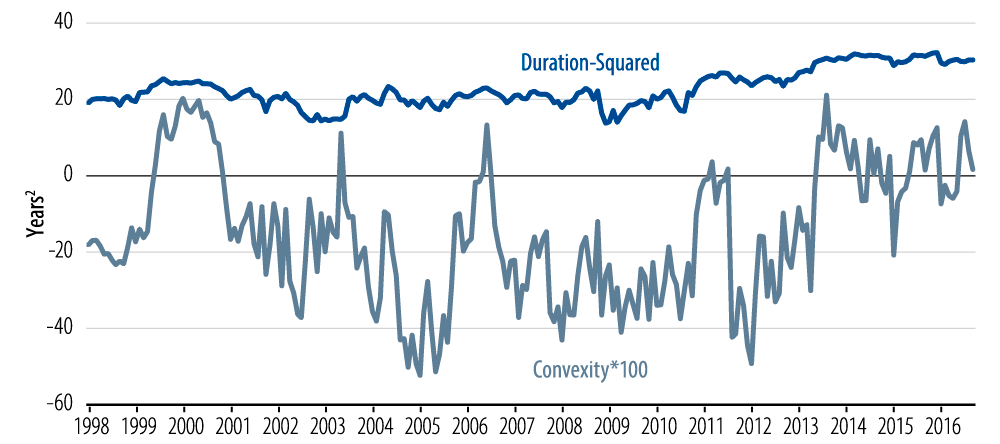

Exhibit 3 shows that over the last 20 years, the Aggregate Index’s duration-squared term has ALWAYS been greater than its convexity, even when the convexity was positive.3

Exhibit 3
Bloomberg Barclays Aggregate D2 and C
convexity-complexity-2016-11
Source: Barclays Live

So the critical quantity D2-C was always positive over the last 20 years. In that case, shouldn’t we have always seen rates-up-duration-up? In other words, in Exhibit 2, all the dots (representing months) should either have been in the upper right quadrant or the lower left quadrant. In fact, 195 months were in these quadrants, but 45 other months were in the off-diagonal quadrants.

The reason for these rates-up-duration-down (or rates-down-duration-up) dots is that the Aggregate Index is not a monolithic entity whereby all securities respond to the same discount rates, nor (as Ms. Wongtrakool points out) was its composition constant. The index composition changes that she discusses can overwhelm the mathematical relationship between duration and convexity of a single security.

Other Indices—Other Relationships

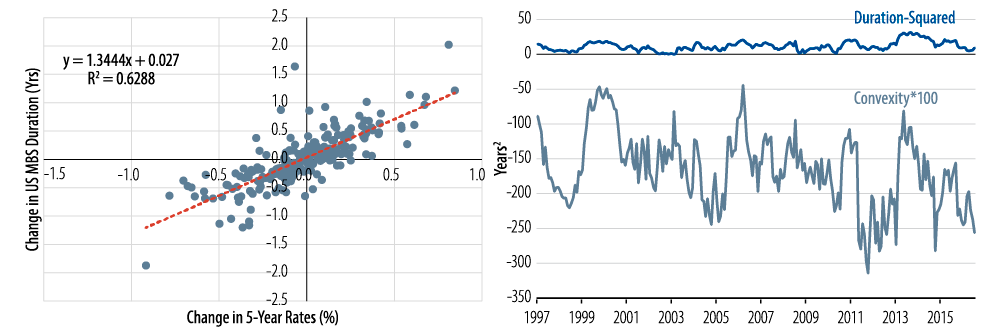

Exhibit 4 repeats the analyses shown in Exhibits 2 and 3, but now applied to the Bloomberg Barclays U.S. Mortgage-Backed Securities (MBS) Index instead of the Aggregate Index. US residential MBS have reliably large negative convexities because the holder of the security cedes prepayment options to mortgage borrowers. As a result, the key quantity D2-C is reliably and significantly positive. This leads to an even stronger rates-up-duration-up relationship than the one displayed by the Bloomberg Barclays U.S. Aggregate Index.

Exhibit 4
Left: US MBS. Right: US MBS D2 and C.
convexity-complexity-2016-11
Source: Barclays Live, Western Asset

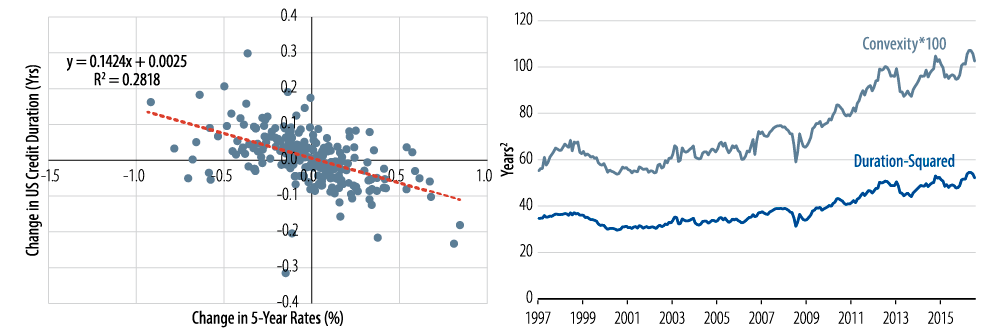

For the opposite effect, consider the Bloomberg Barclays U.S. Credit Index. That index has always had positive convexity that was greater than duration-squared. As a result, the quantity D2-C was always negative, just as it would be for an ordinary bond. We therefore tend to see more of a rates-up-duration-down pattern like the one in Exhibit 1.

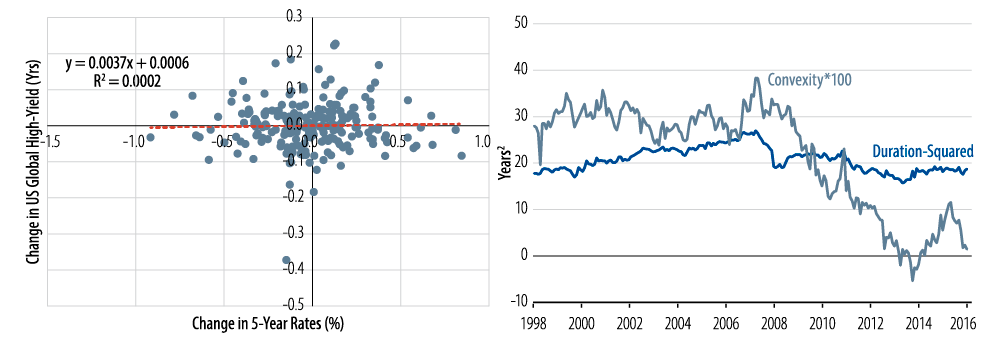

Sometimes the relationship between rate changes and duration changes is just murky. The Bloomberg Barlcays Global High-Yield Index shows no discernable pattern over the period 1998–2016 in Exhibit 6. This is because the quantity D2-C was insignificantly negative for about two-thirds of the analysis period, and was insignificantly positive the rest of the time.

Exhibit 5
Left: US Credit. Right: US Credit D2 and C.
convexity-complexity-2016-11
Source: Barclays Live, Western Asset
Exhibit 6
Left: Global High-Yield. Right: Global High-Yield Credit D2 and C
convexity-complexity-2016-11
Source: Barclays Live, Western Asset

Conclusion

For the U.S. Aggregate Index the relationship between rate changes and duration changes has generally been the opposite (rates-up-duration-up) of what we would expect to see for an ordinary bond (rates-up-duration-down). This opposite pattern holds even more strongly for the U.S. Mortgage-Backed Securities index. However, other indices (such as the U.S. Credit Index) display the ordinary rates-up-duration-down pattern, while others show virtually no reliable impact of rate changes on duration changes.

Investors and portfolio managers need to take into account many factors when anticipating the effects of rate changes on their portfolios. The composition changes that Ms. Wongtrakool highlights, as well as the relationship between duration-squared and convexity, can have profound influences on portfolio behavior.

Appendix: Duration and Convexity

By definition, duration (“D”) is the opposite of the fractional rate of change of prices with respect to changes in rates:

Duration and Convexity Formula 1

where P means price and r is the discount rate. Convexity is similarly defined as the second derivative:

Duration and Convexity Formula 2

To find the rate of change of duration with respect to changes in rates, we need to take the derivative of both sides of equation (1):

Duration and Convexity Formula 3

Thus, an instrument will certainly have increasing duration as rates increase if its convexity is negative. But it may even exhibit this phenomenon if convexity is positive, depending on the relationship between duration-squared and convexity.4

Endnotes

  1. Bonnie Wongtrakool, “Trends and Opportunities in the Bloomberg Barclays Aggregate Index,” September 28, 2016, www.westernasset.com.
  2. We are not claiming that a crystal ball wouldn’t help over and above this phenomenon. It might. More realistically, investment skill would also be useful.
  3. It is customary to report duration in years and convexity in years2/100. In Exhibit 3, convexity is multiplied by 100 so that it has the same unit as duration-squared (years2).
  4. Most fixed-income textbooks contain Equation (3) or its equivalent. For example, see Expression (15.23) in the Oxford Handbook of Quantitative Asset Management (Scherer and Winston, eds.), p. 328.
